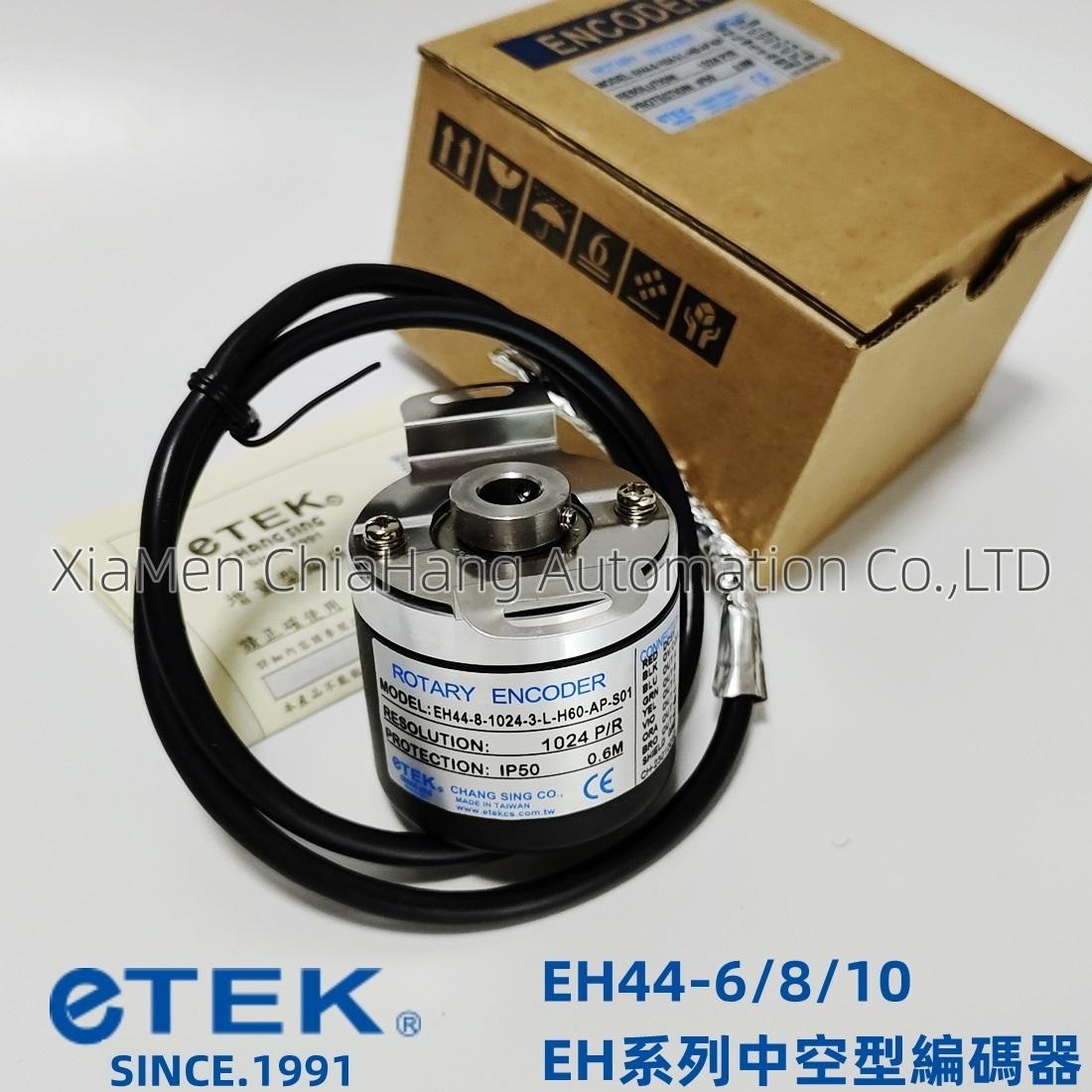

| 電氣規格 |
| 應用型態 |
增量型 |
| 輸出波形 |
方波 |
| 輸出脈衝數 |
5,10,12,20,30,40,50,60,100,150,180,200,250
,300,360,400,500,600,720,800,900,1000,1024
,1200,1500,1800,2000,2048,2500 |
| 輸出相 |
AB phase, ABZ low phase, AB+Z high phase |
| 輸出電路 |
NPN Voltage, NPN Open collector, Push pull
, Line driver |
| 額定電源 |
DC8~26V, DC5V fixed |
| 消耗電流 |
≦60mA |
| 輸出容量 |
Source current:20mA,Residual voltage:0.5V
or less |
| 響應頻率 |
10K Hz~100K Hz Max |
| 輸出相位差 |
A,B phase different 90°±45°(T/4±T/8),
Z phase T±T/2 |
| 波形上升/下降時間 |
2us or less |
| 極性保護 |
Against reverse protection(not with DC5V) |
|
